Product Details

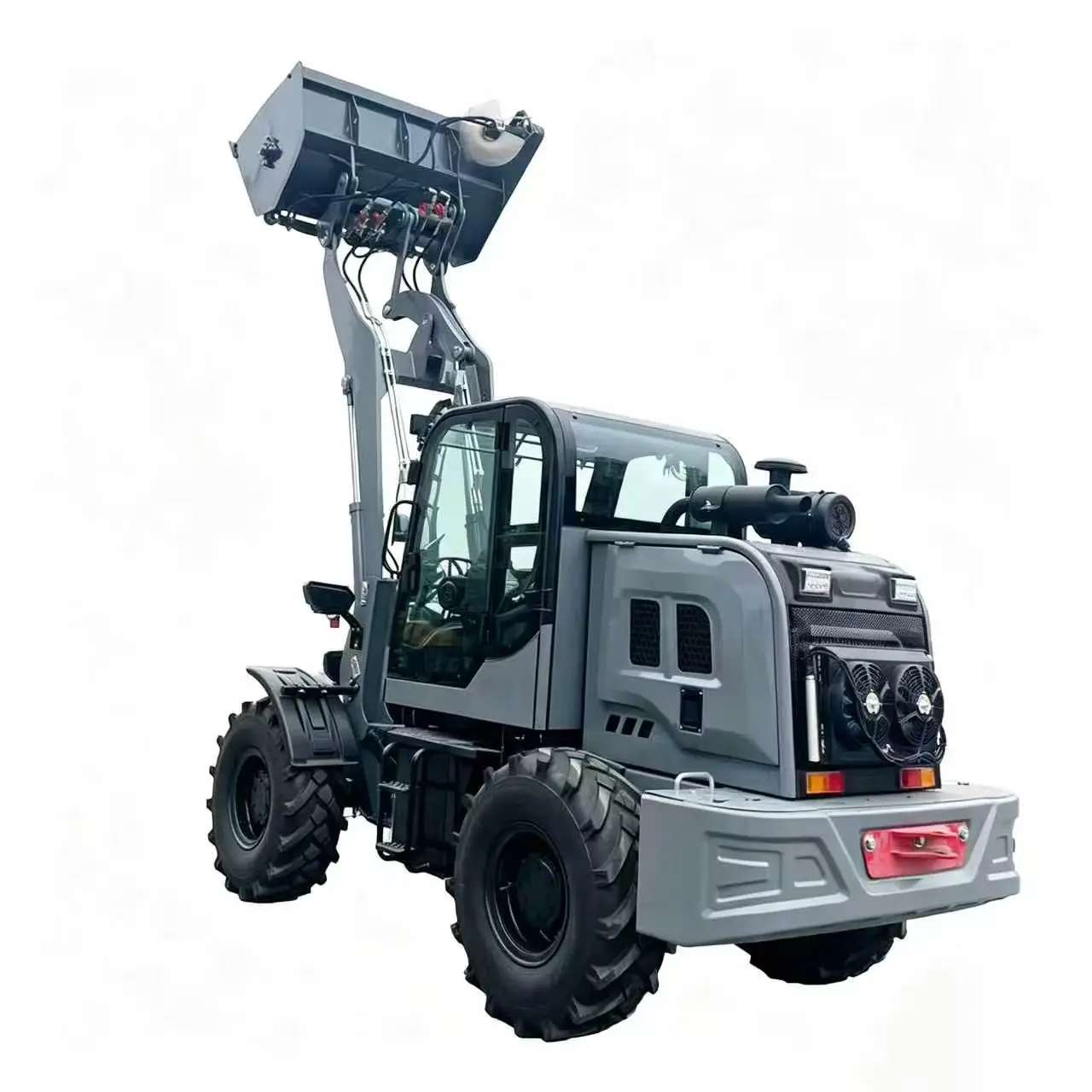

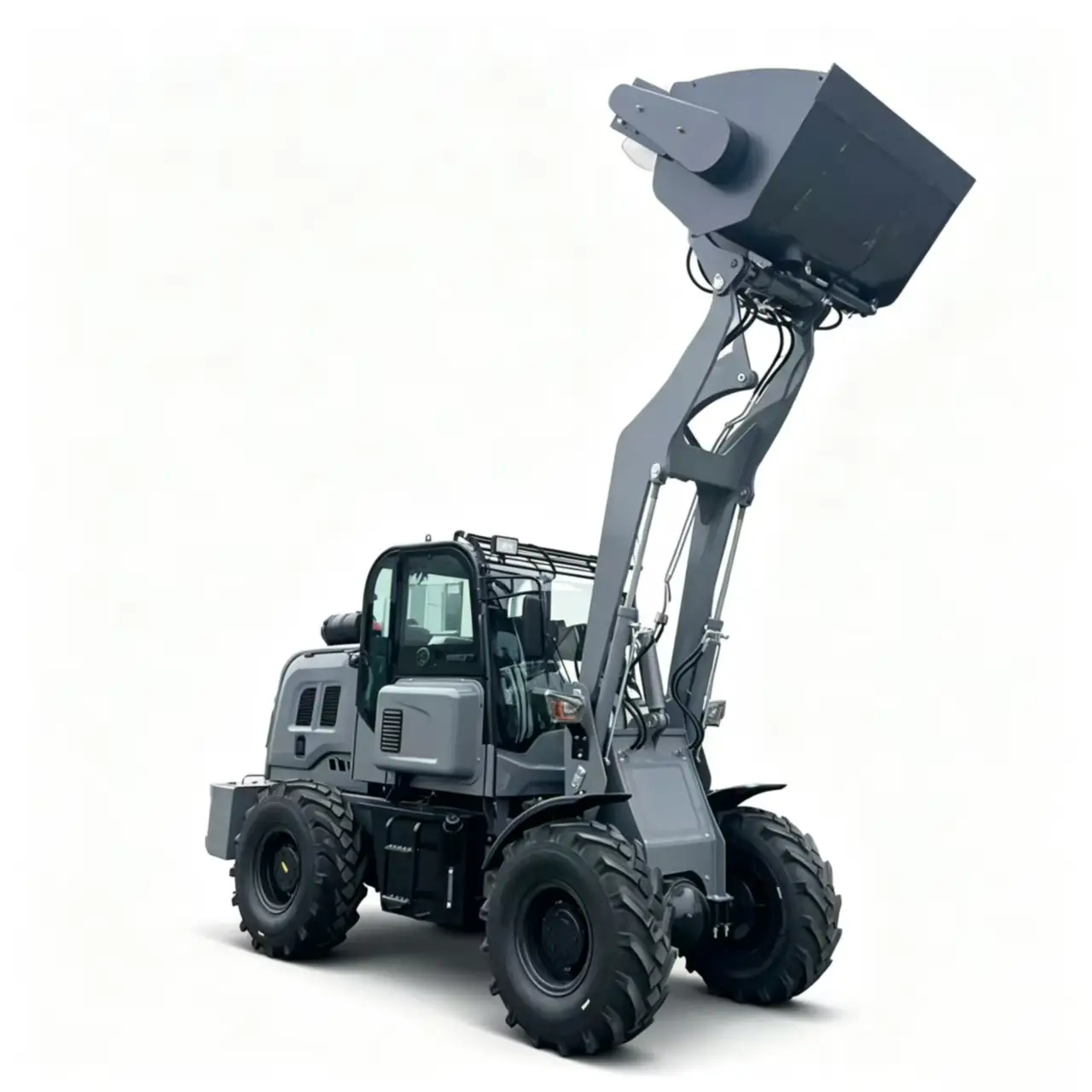

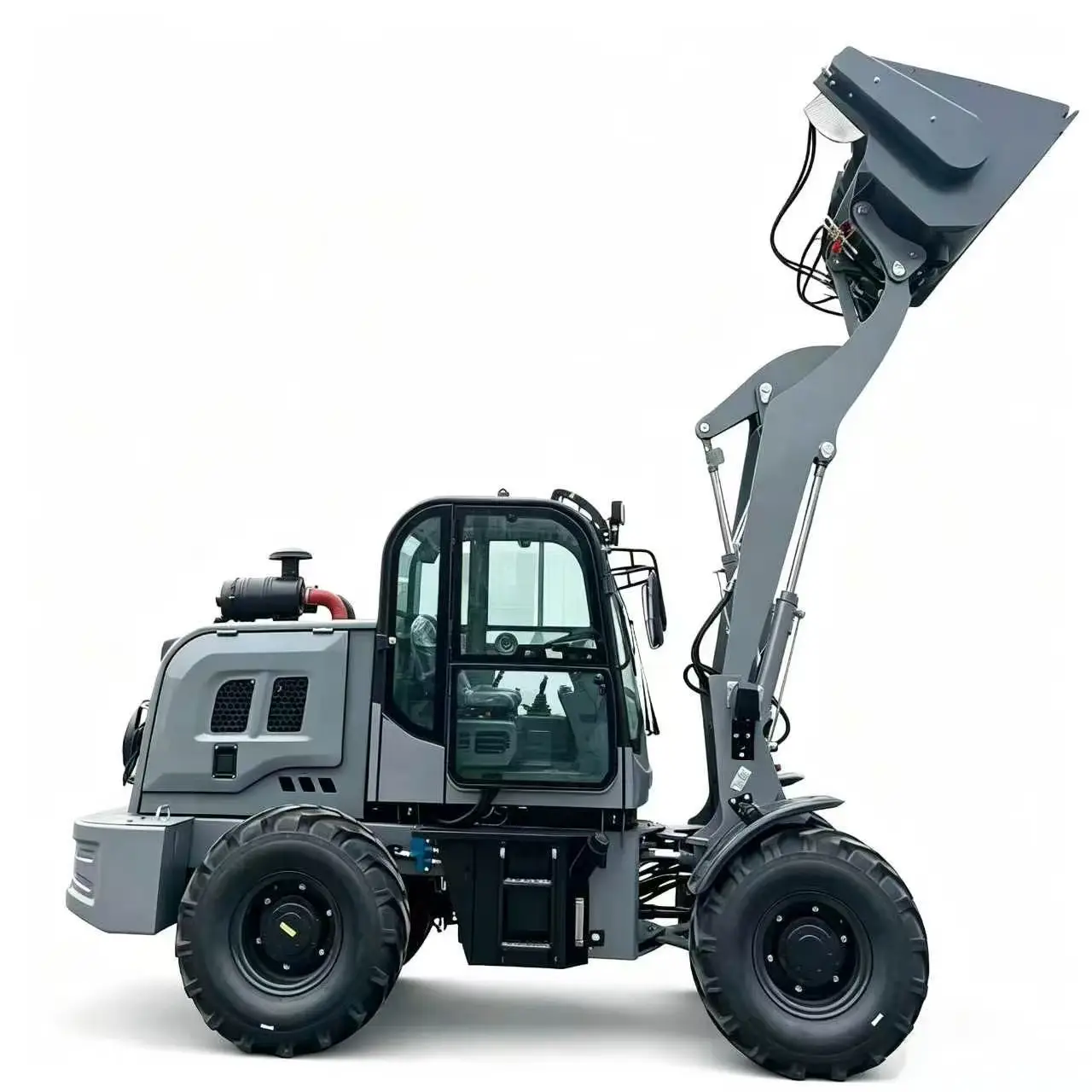

GL‑920
GL‑920 low‑profile wheel loader with 1200kg rated load capacity and easy‑operated stepless speed change. Adjustable unloading height fits low‑clearance sites, farms and construction sites for material loading, customization available.
1.Main Parameters
‑ Overall dimensions: 4650×1500×2200mm
‑ Bucket capacity: 0.3‑0.5m³
‑ Rated load capacity: 1200kg
‑ Operating weight: 2200kg
‑ Unloading height: 2.4‑3.2m
‑ Unloading distance: 805mm
‑ Track width: 1170mm
‑ Wheelbase: 2060mm
‑ Forward speed: 28km/h
‑ Reverse speed: 18km/h
‑ Transmission type: Stepless speed change, 2 forward 2 reverse with high‑low speed
‑ Tire size: 8.25‑16
‑ Fuel tank capacity: 40L
‑ Hydraulic oil capacity: 40L
2.Optional Configurations: Multiple customized configurations are available.
